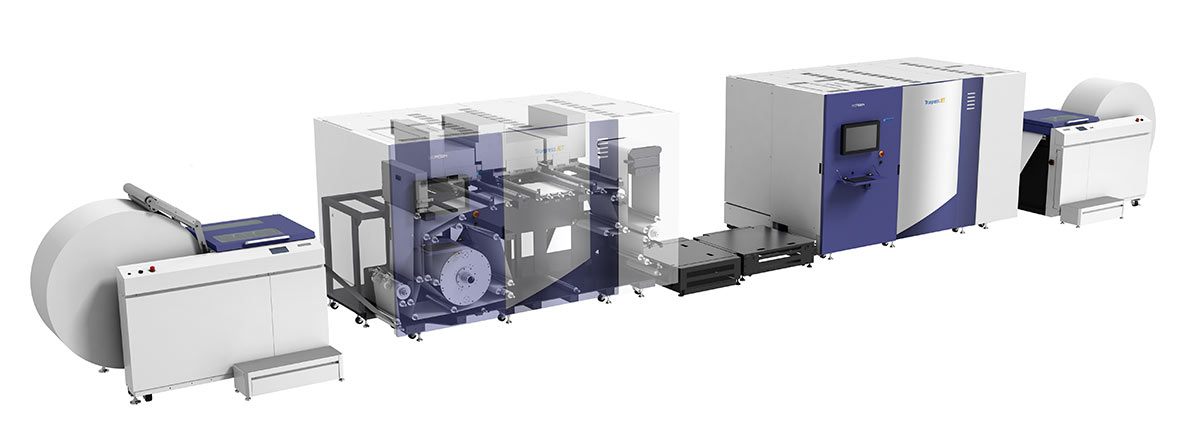

Truepress Jet520NX Full-Color Variable Printing System

Moving Beyond Transaction Printing Into All New Markets

The Truepress Jet520NX is fine-tuned for optimum performance and offers a wealth of new functions to open up a wider range of applications.

Unrivaled quality and speed to power transactional printing superiority

The Truepress Jet520NX features a head-of-the-class five-inch printhead module that delivers unprecedented quality (up to 600 x 900 dpi resolution) and a maximum speed of up to 590 feet (180 meters) per minute. The gap between printheads has been reduced to just one-eighth of earlier SCREEN systems to deliver even higher quality, more stable printing.

Truepress Jet520NX

Truepress Jet520

Easy operation, maintenance, and layout fits your crew & space needs

Trupress Jet520NX Easy Operation

The small footprint of the Truepress Jet520NX permits virtually unlimited space configurations to accommodate efficient positioning of unwind and rewind systems. Layouts can be arranged to suit installation space and orientation of the production line: I-shape, U-shape, L-shape or H-shape design. Maintenance can be performed without cutting paper, and print operation is performed effortlessly from its user-friendly touch panel.

Smart Print Manufacturing

SCREEN has partnered with Solimar to offer Smart Print Manufacturing through integration of SOLitrack with EQUIOS workflow. The SOLitrack system provides excellent visualization of each job’s progress and the status of equipment. It also features a wide range of partnerships that enable it to link with the printers of various manufacturers. SCREEN’s EQUIOS solution platform delivers proven, highly reliable RIP processing, automation of predefined workflows and flexible automation with an array of postpress equipment. The combination of both systems enables the construction of an ideal workflow environment for any customer.

Scalable Configuration

In addition to the standard Truepress Jet520NX, the lineup includes the Truepress Jet520NX EN, an entry level model offering outstanding cost performance. A Black Enhanced high-speed monochrome option is also available, enabling printing companies to build a production system that is ideally suited to their business environment.

“Xross-over” printhead configuration for flexibility and expandability

“Xross-over” printhead configuration

The Trupress Jet520NX has a unique printhead design that efficiently handles both monochrome and full color printing. CYM printheads can be “parked” when printing mono, to reduce ink consumption. Plus an extra printhead can be installed adjacent to the other printheads to handle MICR and other specific function inks.

Truepress Jet520NX next generation full-color inkjet printing for superior transactional printing

The Truepress Jet520NX’s class-leading 5-inch printhead module and “x-over” design affords transactional printers faster 180 m/min speed, superb resolution up to 600 x 900 dpi and more flexibility and expandability than any high-speed, full-colour variable inkjet system in use.

Functional Printing

The Truepress Jet520NX features a 5th inkjet head, which supports variable printing using functional inks. This includes magnetic ink for MICR, UV visible ink and IR absorbing ink. It secures authenticity of physical printing and adds special attributes without the need for any extra processes.

Watermark printed by UV visible ink


JetInspection

Adding Value to Your Print

The Truepress Jet520NX series of standard and high definition printers print beautifully, economically and consistently but that is not always enough. The JetInspection solution brings invaluable supporting functionality such as:

  • Real time print monitoring
  • Printed image capture for a digital record of what’s been printed
  • Real time printed image to PDF comparison
  • Bar code and OCR data capture and database storage

EQUIOS PrintSimulator / Pro

Quickly analyze your PDF files for improved productivity

EQUIOS PrintSimulator is a powerful tool designed to detect any errors embedded in a PDF. With the PrintSimulator, multiple PDFs are analyzed simultaneously at high speeds. PrintSimulator assists in achieving high levels of productivity, stability and accuracy in print operations.

Applications

Transactional

Transactional

SCREEN high-speed inkjet presses are changing the look and feel of monthly statements, invoices, policies and other documents. Attention-grabbing color and targeted messages combine with fast throughput to add value to every customer communication.

Commercial

Commercial

When it comes to reliable production, faithful color and fast turnarounds for a variety of high-volume commercial printing applications, SCREEN Truepress Jet520 series inkjet web presses satisfy all your customers’ demands. Flexible system configurations and versatile options allow you to build the production solution you need.

Publishing

Publishing

SCREEN technology creates new opportunities to use continuous-feed inkjet for high-end publications and digital book printing that were previously impossible. SCREEN inkjet web presses leverage the speed advantages of digital technology while providing opportunities for variable data, full color and different text stocks.

Direct Mail

Direct Mail

Time to market is everything in the print-and-mail world. For time-sensitive, mission-critical communications that get results for your clients, look no further than SCREEN high-speed inkjet.

News

SCREEN Adopts “Creating a Future in Print—Tech x Irodori” as Its Theme for drupa 2024

SCREEN Adopts “Creating a Future in Print—Tech x Irodori” as Its Theme for drupa 2024

SCREEN Graphic Solutions Co., Ltd. (SCREEN GA) announces that it will take part in drupa 2024, which is scheduled to take place in Düsseldorf, Germany, from May 28 to June 7 at the Messe Düsseldorf convention center.

Read More »


Direct Mail Printer Gains Competitive Edge by Investing in Both the SCREEN Truepress JET 520NX and Truepress JET 520HD+

Direct Mail Printer Gains Competitive Edge by Investing in Both the SCREEN Truepress JET 520NX and Truepress JET 520HD+

SCREEN Americas announces the installation of the Truepress JET 520NX to MCT, also known as Marketing Card Technology, LLC.

Read More »


Videos

Monitor Your Print Production with SCREEN’s JetInspection

Monitor digital inkjet print production in real time with JetInspection, a system designed for the Truepress JET series from SCREEN. JetInspection detects clogged nozzles and cleans only the printheads that need it. The system also verifies accurate print resolution and keeps a record of what’s been printed using OCR barcode/decode capabilities.


PRINTING United Expo 2023 Recap

During PRINTING United Expo 2023, which was held in Atlanta, Georgia, October 18–20, SCREEN Americas was able to address many sought-after solutions with live demonstrations of its technology and multiple samples from its presses.

Read More »


Literature

Truepress Jet520NX Literature

Download Brochure

Please provide a little information about yourself before downloading the Truepress Jet520NX brochure.

Thank you for your interest in Truepress Jet520NX.

Download Brochure (PDF)

* denotes required field

Specifications

Dimensions

Schematic (1 of 2)

Schematic (2 of 2)

Printing methodSingle pass inkjet, drop on demand piezo
Controller (requires selection)EQUIOS: PS, PDF, PDF/VT
IPDS controller: AFP/IPDS
RIPEQUIOS
InkTruepress inks
Resolution600 x 450 dpi, 600 x 600 dpi, 600 x 900 dpi
Printing speedMax. 180 m (590')/min*
Printing width165 to 520 mm (6.5" to 20.4")
Black Enhanced high-speed monochrome option180 m (590.4')/min (600 x 600 dpi)
Paper width165 to 520 mm (6.5" to 20.4")
Paper thickness40 to 250 gsm*
Dimensions (W x D x H)3,240 x 1,860 x 1,981 mm (127.6" x 73.3" x 78.0") (height includes padding of 10 mm)
WeightApprox. 2,830 kg (6,226 lb) (including extra printheads)
Power requirementsPrinter
Controller: Three phase 200 to 240 V, 31.4 A / 380 to 415 V, 16.5 A
Heater: Three phase 200 to 240 V, 95 A / 380 to 415 V, 50 A
Controller PC: Single phase 100 to 240 V, 2 A
EQUIOS: Single phase 200 to 240 V, 30 A
Ink supply unit: Single phase 200 to 240 V, 5 A
Operating environmentTemperature: 18 to 24°C (64.4 to 75.2°F) (no sudden temperature changes)
Humidity: 40 to 60% (no condensation)

* Some conditions apply.
